12 Way Fuse Box

Product description

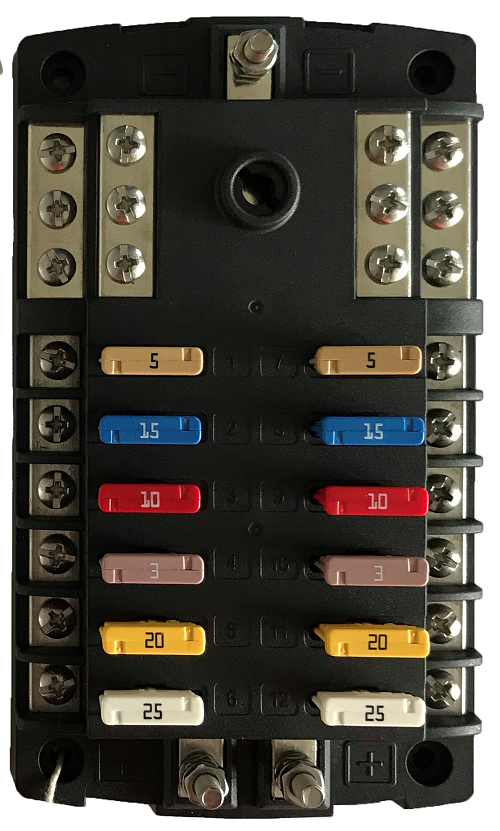

12 way blade fuse box consisting of 2 positive & 1 negative busbar. Suitable for the automotive & marine industries. Positive Circuit A: 1 x common busbar and 6 x individual circuits protected by standard blade fuses Positive Circuit B: 1 x common busbar and 6 x individual circuits protected by standard blade fuses Negative Circuit: 1 x common busbar (un-fused) plus 12 x individual connection blocks The clear cover incorporates a twist & lock opening mechanism and sunken sides for easy opening with one hand. There is space inside the cover to hold 2 spare fuses and label recesses on the outside for easy circuit identification. Accepts our range of standard blade fuses, which are available separately. Industry standard mounting holes means this system can be retro fitted to replace other popular units. The built in negative busbar can make this unit popular on boats, where the ground returns from each load needs to be collected together and run back to the battery. Specification Voltage (Max): 32DC Input Terminal Rating: M5 threaded studs (160A max) Output Terminal Rating: 30A/30A max load per circuit Torque Rating: 20 in-lb (2.25Nm) max Mounting Torque Rating: 8 in-lb (0.9Nm) max Temperature Rating: -25°C to +85°C Material: Cover PC (clear) Housing & Base: PBT (black) Terminal: Tinned Copper Rating: 100A Max Dimensions: L164 x W95 x D59 mm (includes lid)
